Display units

Display units

The result of a measurement cannot be seen without a display. Our displays are part of our measurement system and are connected to the force transducers. Visualisation is realised numerically in the appropriate units for forces and weights. They are a component part of our force measurement systems and can be found in instruments such as force gauges or the different hanging scales.

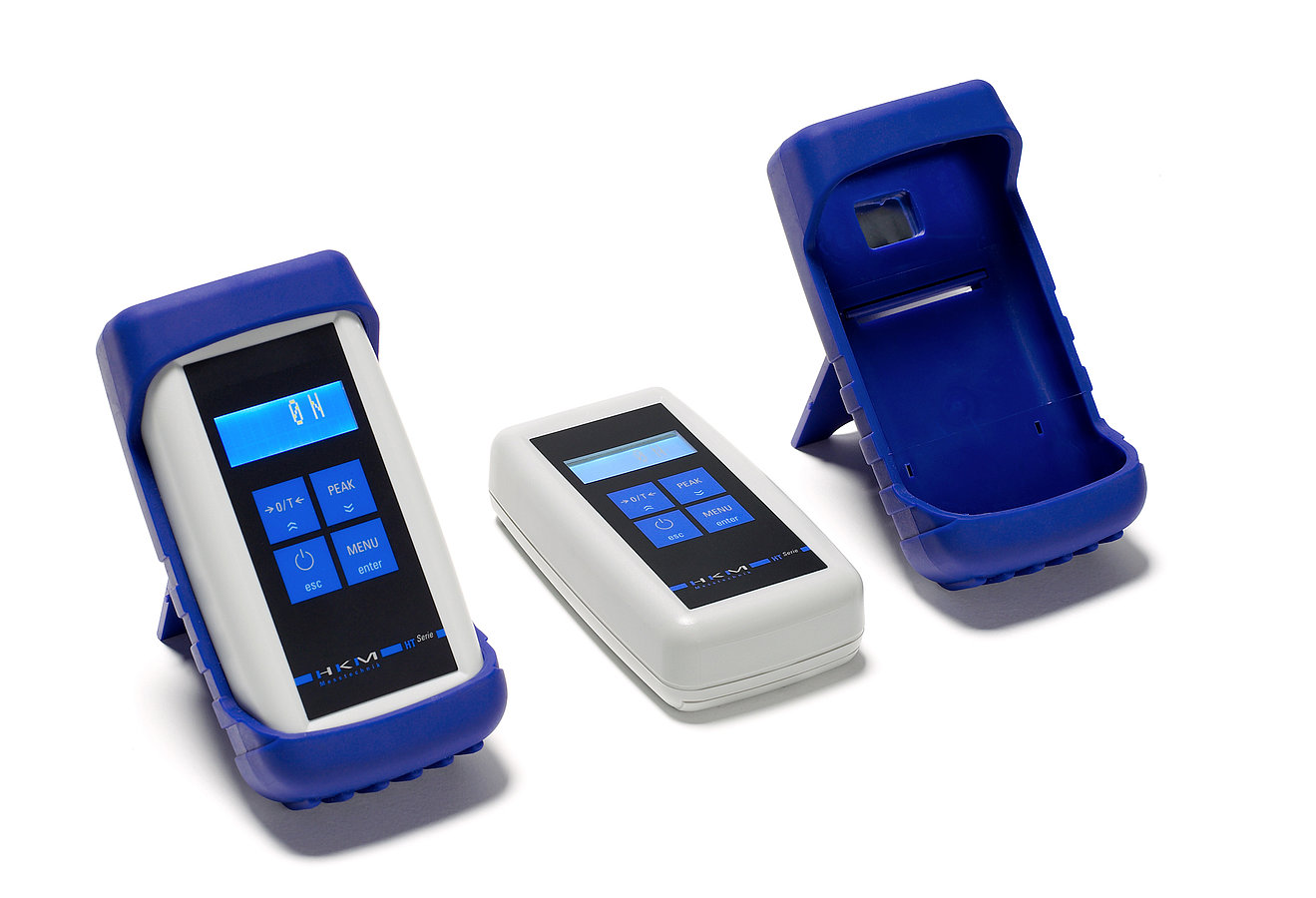

Portable hand terminal HT 6.0

Portable hand terminal

The portable battery-operated hand terminal is designed for direct connection to a strain gauge sensor (force transducer, load cell or pressure transducer). The display shows the measured values with prefix, the measuring unit and the required decimal places. It is possible to set the display to zero, to tare it or to request the peak values in a positive and negative direction of force.

  • Measuring units: N, kN, g, kg, t or lb
  • 4 x battery type AA operation
  • 12-digit, 2-line illuminated LCD display
  • P40 protection
  • Portable force gauges
  • Hanging scales / dynamometers

PAX display module

PAX display module

As a component of our measurement system, the PAX industrial digital display is suitable for direct connection to a force transducer, a load cell or one of our other sensors. The PAX display is available as a flush-mounting version for panel mounting or as a stand-alone enclosure. The PAX-S version is directly connected to strain gauge bridge signals, whereas the PAX-P is linked to sensors with voltage and current outputs. The display shows the measured values with prefix, the measuring unit and the required decimal places. Functions such as summation, minimum and maximum value output and tare can be selected by push button. A variety of user inputs is provided.

  • Measuring units: N, kN, g, kg, t or lb
  • Supply voltage 24V, alternatively 230V via a plug-in power supply unit
  • 5-digit LED display, height 14mm
  • Optional interfaces:
  • RS232 / RS485 interface
  • Relay card
  • Analog output
  • USB card with archiving software
  • DeviceNet
  • Profibus DP
  • Force gauges
  • Process monitoring

AM large display module

AM large display module

As part of our measurement system, the large display can be connected to up to 4 force transducers, load cells or one of our other sensors. The connection in this respect is established directly to the sensor signal, the current output of sensors with measuring amplifiers or via an RS 485 interface. The display shows the measured values with prefix and the measuring unit in large characters. Functions such as tare or the protected calibration function can be selected through single button operation. The large display can be set up as a standing unit in the basic version or, optionally, is supplied with a bracket so that it can be suspended.

  • 4-channel system
  • Measuring units: N, kN, kg, t
  • Operation via plug-in power supply unit or 12V vehicle electric system
  • 5-digit LED display, height 57mm
  • IP65 protection
  • Scales
  • Force gauges
  • Filling level monitoring
